Welcome to our comprehensive review of the Hosyond OLED Display Module 128×64 Pixel. If you’ve been searching for a high-quality display module that offers superior performance and crystal-clear visuals, you’ve come to the right place. In this blog post, we will dive deep into the features, functionality, and overall performance of the Hosyond OLED Display Module, ensuring that you have all the information you need to make an informed decision. Whether you’re a tech enthusiast, a developer, or simply someone looking to upgrade their display module, we understand the importance of finding the perfect fit for your needs. So, let’s get started and explore the incredible capabilities of the Hosyond OLED Display Module 128×64 Pixel.
Hosyond OLED Display Module 128×64 Pixel

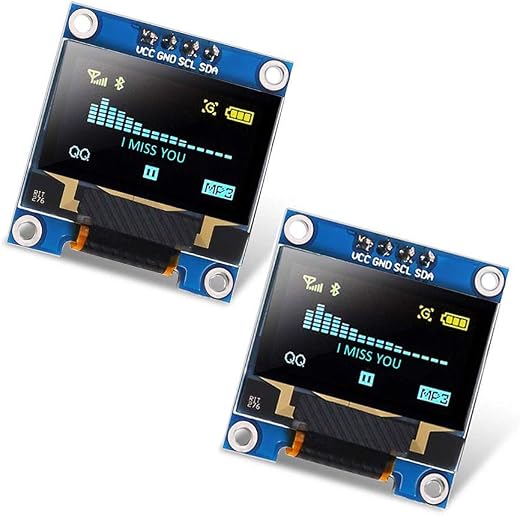

The Hosyond 5 Pcs 0.96 Inch OLED I2C IIC Display Module is a versatile and compact screen board that is compatible with Arduino and Raspberry Pi. With a resolution of 128 x 64 pixels, this OLED display module provides clear and sharp visuals. The wide view angle of over 160° ensures that the display can be easily viewed from different angles.
This display module operates on a support voltage range of 3.3V-5V DC, making it compatible with a wide range of devices. It consumes low power, with a consumption of 0.04W during normal operation and 0.08W when the full screen is lit. This makes it energy-efficient and suitable for projects where power consumption needs to be minimized.
The embedded driver IC, SSD1306, ensures smooth and reliable performance. Communication with other devices is facilitated through the I2C/IIC interface, which only requires two I/O ports. This allows for easy integration with Arduino and Raspberry Pi boards.
The Hosyond OLED display module is lightweight, weighing only 1.44 ounces. Its compact dimensions of 5.16 x 3.23 x 0.98 inches make it easy to incorporate into various projects. The blue and yellow color scheme adds visual appeal to the module.
This product is manufactured by Hosyond, a reputable brand in the industry. It is made in China and was first available on August 9, 2021. The product’s ASIN is B09C5K91H7, and it is suitable for a range of applications, including wireless projects utilizing Bluetooth technology.
- Display Type: OLED
- Display Size: 0.96 Inch
- Resolution: 128×64 Pixels
- Communication Interface: I2C IIC
- Self-Luminous: Yes
- Compatibility: Arduino, Raspberry Pi
- Color: Blue and Yellow
- Weight: 1.44 ounces
Overall, the Hosyond 5 Pcs 0.96 Inch OLED I2C IIC Display Module offers a reliable and versatile solution for displaying information in various projects, with its high resolution, low power consumption, and easy interfacing capabilities.
High-resolution OLED display module
- 0.96 inch OLED display
- 128 x 64 pixel resolution
- Wide viewing angle of over 160°
- Supports voltage range of 3.3V-5V DC
- Low power consumption: 0.04W during normal operation
- Embedded SSD1306 driver IC
- I2C/IIC interface for communication
- Compatible with Arduino R3 and Raspberry Pi
The Hosyond 5 Pcs 0.96 Inch OLED I2C IIC Display Module is a versatile and compact display module that is designed for use in IoT projects, DIY devices, and more. With its 0.96 inch OLED display and 128 x 64 pixel resolution, it provides a clear and sharp display of data. The wide viewing angle of over 160° ensures that the information can be easily seen from different angles.
This display module supports a voltage range of 3.3V-5V DC, making it compatible with a variety of devices such as Arduino R3 and Raspberry Pi. Its low power consumption of only 0.04W during normal operation ensures that it does not drain too much power from the connected device.
Users have praised the module for its ease of use and programming. It communicates over the I2C bus and has an address of 0x3c, which can be changed with soldering if necessary. The module uses the SSD1306 protocol and there are several libraries available for easy integration into different projects. The blue and yellow pixel colors are fixed and cannot be customized, but this is not seen as a drawback by most users.
Overall, the Hosyond 5 Pcs 0.96 Inch OLED I2C IIC Display Module is a reliable and efficient display solution for various applications. Its compact size, low power consumption, and compatibility with popular development boards make it a valuable component for DIY electronics projects.
Advantages of OLED Display Module
- Communicates over the I2C bus
- Compatible with Arduino and Raspberry Pi
- Self-luminous OLED screen
Limitations
- Pixel color cannot be changed/customized
- Mounting holes are smaller than standard Raspberry Pi boards
9.1
Versatile display solution
In conclusion, the Hosyond 5 Pcs 0.96 Inch OLED I2C IIC Display Module is a reliable and efficient display solution with its compact size, low power consumption, and compatibility with popular development boards. Its self-luminous OLED screen and wide viewing angle make it a valuable component for DIY electronics projects.

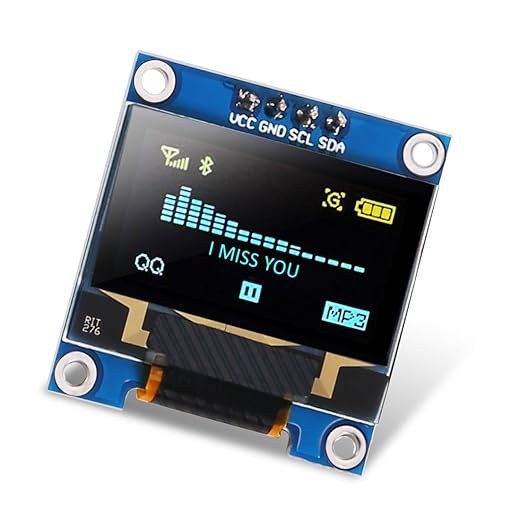

Explore other options for OLED display modules with a resolution of 128×64 pixels
Factors to Consider When Choosing OLED Display Modules
When selecting OLED display modules, there are several factors to consider. First, it is important to determine the specific requirements of your application, such as the desired size, resolution, and interface compatibility. Next, consider the performance characteristics, such as brightness, contrast ratio, and viewing angles, to ensure optimal visibility in different lighting conditions. Additionally, evaluate the module’s power consumption and operating temperature range to ensure it meets your power budget and environmental conditions. It is also advisable to review the manufacturer’s reputation and product quality, as well as their technical support and warranty policies. Finally, consider the cost and availability of the OLED display module to ensure it aligns with your budget and timeline. By carefully considering these factors, you can select the most suitable OLED display module for your specific application.
- Display Quality: Check for a high-quality OLED panel that offers sharp and clear images with vibrant colors. Look for good contrast ratio and wide viewing angles
- Resolution: Ensure that the module has a 128×64 pixel resolution, which indicates the number of pixels available to display content. This resolution is common for small OLED displays
- Size and Dimensions: Consider the physical size and dimensions of the module to determine if it fits your intended application or project. Check the overall dimensions and the size of the display area
- Communication Interface: Check the supported communication interface of the module. It can be I2C, SPI, or others. Make sure it is compatible with your microcontroller or development board
- Power Consumption: Consider the power consumption of the module, especially if it will be used in battery-powered devices. Look for low-power consumption for efficient operation
- Driver and Controller: Verify if the module comes with an integrated driver and controller circuitry. This ensures easy integration and compatibility with different microcontrollers or development boards
- Brightness and Contrast: Look for a display module that offers sufficient brightness levels to ensure readability even in different lighting conditions. Also, check for good contrast levels for better visibility
- Durability and Lifespan: Consider the module’s durability and expected lifespan. Look for features like scratch-resistant screens or protective coatings to ensure its longevity
- Available Documentation and Support: Check if the manufacturer provides comprehensive documentation, including pinouts, wiring diagrams, and example codes. It’s also beneficial to have access to a responsive technical support team or community forum for any potential questions or issues
- Price and Reputation: Compare prices from different retailers or suppliers to ensure you’re getting a fair deal. Additionally, consider the reputation of the brand or manufacturer to ensure product reliability and customer satisfaction
Identifying Red Flags: Indicators that the Hosyond OLED Display Module 128×64 Pixel may not meet your needs.
- Compatibility: If you are not using Arduino or Raspberry Pi, this product may not be compatible with your device. Ensure that your device is listed as compatible before purchasing
- Size and resolution: The product description mentions a specific size and resolution (0.96 inch and 128×64 pixels). If you require a larger or higher resolution display, this product may not meet your requirements
- OLED technology: This product utilizes OLED (Organic Light Emitting Diode) technology. If you specifically need an LCD (Liquid Crystal Display) or another type of display technology, this product may not be suitable
- Self-luminous display: The description states that the OLED screen is self-luminous. If you require a display that requires external lighting or backlighting, this product may not be ideal for your needs
- I2C IIC interface: The product description mentions an I2C IIC interface. If you require a different interface, such as SPI or UART, this product may not be compatible with your project
Understanding the Key Terminology
- Organic Light-Emitting Diode (OLED): A display technology that uses organic compounds to emit light when an electric current is applied, resulting in brighter and more vibrant colors compared to traditional liquid crystal displays (LCDs)
- Pixels: The smallest individual units of an OLED display that emit light independently. Each pixel consists of red, green, and blue subpixels that combine to produce a wide range of colors
- Contrast Ratio: The ratio between the brightest white and the darkest black that an OLED display can produce. OLED displays typically have higher contrast ratios compared to LCDs, resulting in deeper blacks and more vivid images
- Luminance: The brightness level of an OLED display, typically measured in nits or candelas per square meter (cd/m²). OLED displays can achieve high levels of luminance, resulting in sharp and clear images even in bright environments
- Response Time: The time it takes for a pixel to switch from one state to another. OLED displays have fast response times, which means they can display fast-moving images without motion blur or ghosting
- Burn-in: A phenomenon where static images or elements that are displayed for a prolonged period can leave a permanent ghost image on an OLED display. However, modern OLED displays have implemented various technologies to minimize the risk of burn-in
- Viewing Angle: The maximum angle at which the contents on an OLED display can be viewed without any significant loss in color accuracy or contrast. OLED displays typically have wide viewing angles, allowing for a consistent viewing experience from different positions
Frequently Asked Questions about OLED Display Modules
How do OLED display modules compare in terms of power consumption and energy efficiency, especially for applications where battery life is crucial?
OLED display modules, such as the Hosyond 0.96 Inch OLED I2C IIC Display Module, are known for their low power consumption and high energy efficiency. Compared to other display technologies like LCD, OLEDs do not require a backlight, resulting in reduced power consumption. OLED screens only consume power when individual pixels are lit, making them more energy-efficient, especially for applications where battery life is crucial. Therefore, using an OLED display module can help optimize power usage and extend battery life in portable devices like Arduino and Raspberry Pi projects.
What are the main considerations or challenges that need to be addressed when integrating OLED display modules into a product or system, such as driver compatibility, thermal management, and longevity?
When integrating OLED display modules into a product or system, there are several main considerations or challenges that need to be addressed.
- Driver Compatibility: Ensure that the chosen OLED display module is compatible with the driver or microcontroller being used in the product or system. This involves verifying if the necessary libraries and drivers are available for the chosen platform.
- Thermal Management: OLED displays can generate heat during operation, which can affect their performance and longevity. Proper thermal management techniques, such as adding heat sinks or incorporating cooling systems, may be required to prevent overheating and ensure reliable operation.
- Longevity: OLED displays have a limited lifespan compared to other display technologies. It is important to consider the expected usage and lifespan requirements of the product or system and choose an OLED display module with adequate durability and longevity to meet those requirements.
To enhance your projects with a high-quality display, consider the Hosyond 5 Pcs 0.96 Inch OLED I2C IIC Display Module. With its 128×64 pixel SSD1306 mini self-luminous OLED screen, this module offers compatibility with Arduino and Raspberry Pi. Add a touch of sophistication to your creations with the blue and yellow OLED screen board. Get your Hosyond 5 Pcs module now and bring your designs to life.
